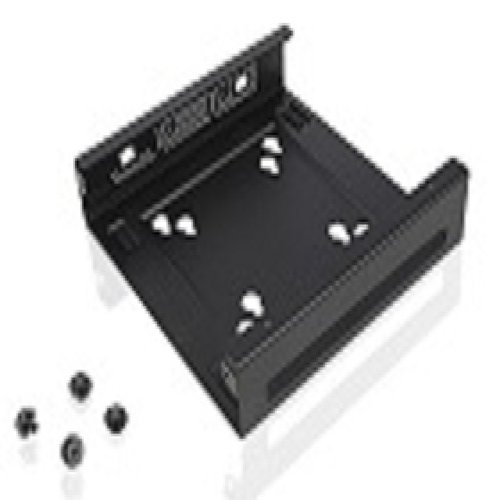

The ThinkCentre Tiny VESA Mount II is a unique design specifically for housing the Tiny PC while featuring the universal VESA mount configuration. The VESA standard enables this mount to attach to anything that is VESA-compatible for the utmost in mounting flexibility. This versatile mounting device can be used separately or combined with other options for secure mounting functionality. The ThinkCentre Tiny VESA Mount is a required component for the following ThinkCentre Tiny options

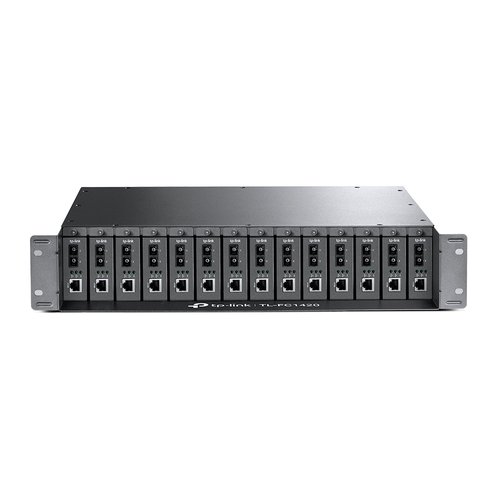

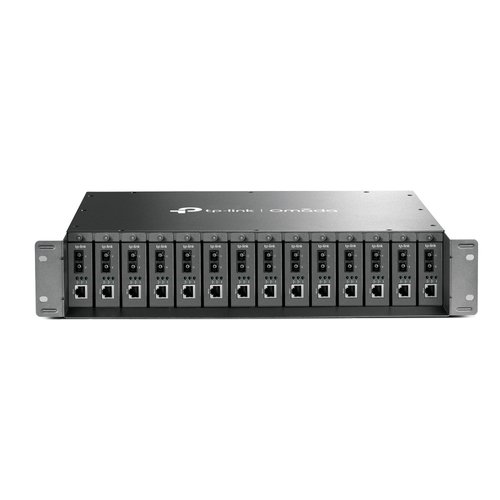

The Omada 14-Slot Rackmount Chassis MC1400 is specially designed to accommodate 14 Omada Media Converters for central power supply, saving space and power cables. Continuous operation is important to fiber communication, so the chassis is equipped with an optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed inside. Together with Omada MC series Gigabit / Fast Ethernet media converters, MC1400 is the ideal solution for your media conversion network.

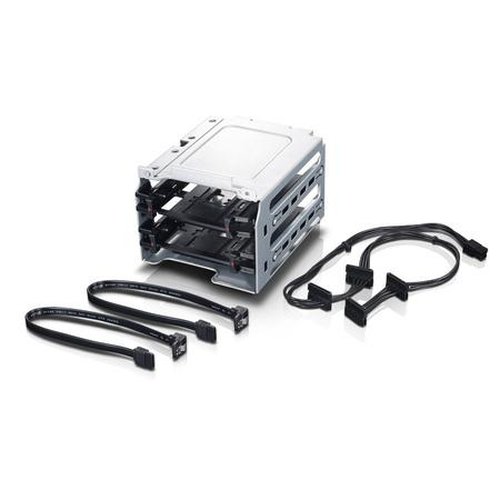

The ThinkStation P520 HDD Bracket Kit is a dedicated bracket to install hard drives into the ThinkStation P520. Easily upgrade your work station's storage with this bracket kit.

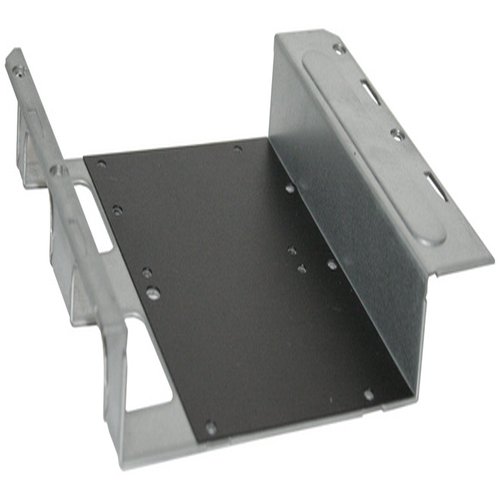

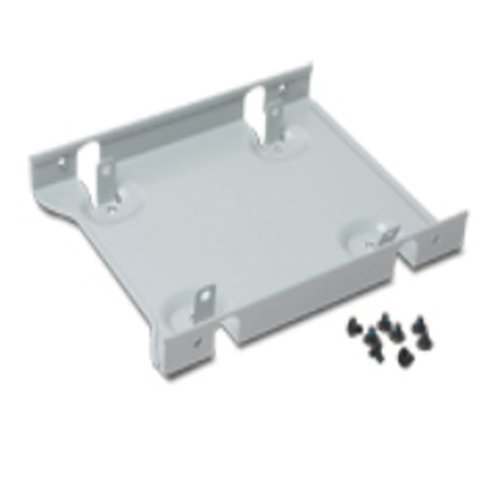

With a second PHD3 up to four 2.5'' drives can be installed. Please note that a fourth 2.5'' drive can only be installed in XPCs of the J- and R-series.Please check the number of available SATA data and power connectors. Current XPC models usually offer four SATA data connectors and three SATA power connectors.

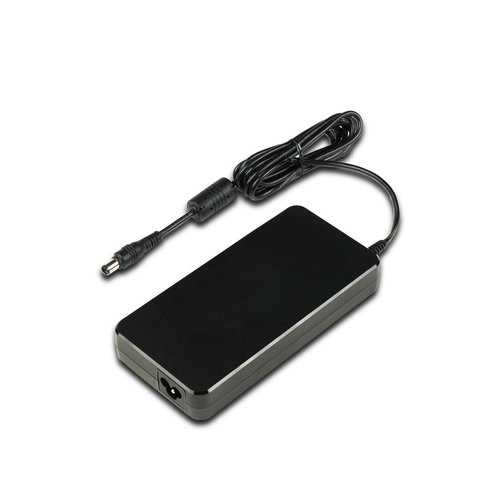

The Shuttle Accessory PE180 is an external 180W power adapter for the Shuttle XPC slim Barebone XH510G2 in connection with the Shuttle XPC Accessory PRC01.
Media converter flexibilityThe Allied Telesis MMCR18 is a two rack unit high chassis, which enables network managers to use up to 18 MMC series media converters in a standard 19 inch rack. For redundancy, it can be powered with either one or two Power Supply Units (PSUs).Power optionsThe MMCR18 Chassis can be powered with either an AC or DC power supply, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot swappable PSU to eliminate network downtime. The unit saves space in the wiring closet, and minimizes the number of power connections required. Single-unit media converters can be removed from the MMCR18 and deployed individually to accommodate network modifications.By incorporating a backplane with 18 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converterswhether using one or two PSUs. Rack-mount designDesigned with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail.The rack-mount chassis includes six status LEDs on the front panel indicating power, temperature, fan and fault status.

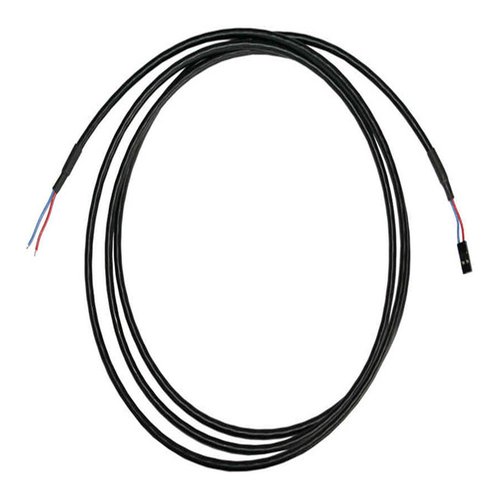

Some Shuttle XPCs have a handy connector at the back panel to connect an external power button. In case the XPC is installed in a scenario where it cannot be accessed directly, be it VESA-mounted or otherwise remotely installed, it can still be powered on or off conveniently by using an external push button switch. Shuttle therefore provides a 2-metre cable with fitting connections that only requires a push button switch.
M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives either with the addition of a upported M.2 adapter or directly on the system board.On the ThinkSystem SR150, SR250 and ST250, a single M.2 drive is installed directly on the system board.On all other support ThinkSystem servers, the M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.- Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit- Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement KitA Dual M.2 Adapter with one 128GB M.2 drive partially inserted is shown in the following figure. The second M.2 drive is installed on the other side of the adapter.

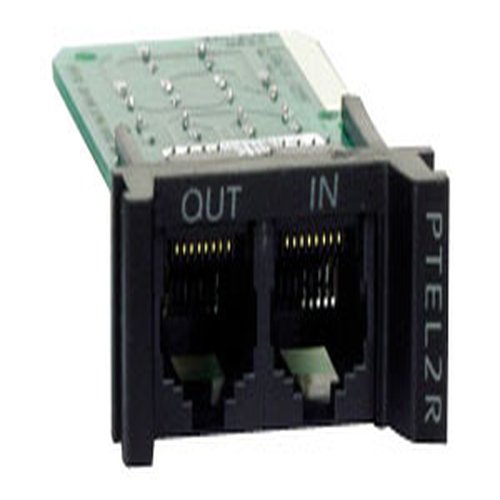

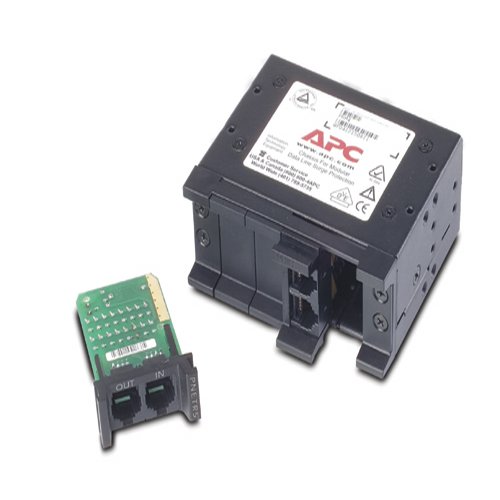

The majority of all surge-induced damage is caused by surges and spikes traveling along unprotected data lines. These surges originate from a wide variety of sources, including static charge buildup and lightning strikes. Left unprotected, your data lines expose network cards, A/V components, modems and other network equipment to damaging electrical transients. The Rack-mount ProtectNet family offers a modular approach to protecting a variety of data lines, including telephone lines, network lines, coax cables and more. Installing any combination of individual surge protection modules into either the four- or 24-position chassis and connecting them to earth ground will prevent back-door surges from ruining your productivity and costing you money.

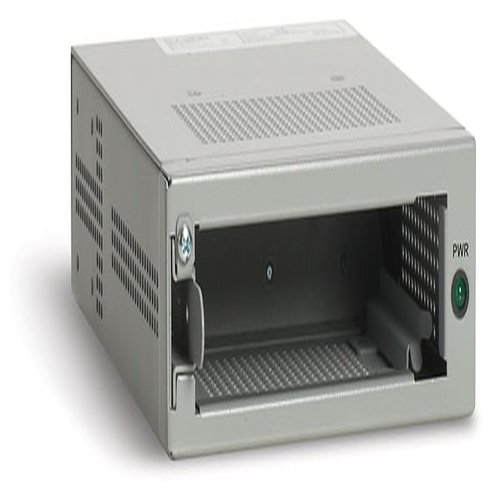

OverviewThe AT-MCR1 is a single slot, rack-mountablechassis, capable of housing any of the range ofFast Ethernet and Gigabit media converters andbridging media converters.The chassis featuresan internal power supply, which negates theneed to use the external power adaptershipped with the media converter. A front panelLED power indicator shows the user whenpower is applied to the chassis. All thestandalone media converters and bridgingmedia converters can be hot inserted andremoved from the chassis, thus removing theneed to power down the chassis formaintenance and upgrades.The chassis shipswith a rack-mount kit.
Riser cards are used to extend a slot for a chip or card in a fully loaded computer. This product has been tested and validated for on Dell systems to ensure it will work with your computer. It is supported by Dell Technical Support when used with a Dell system.

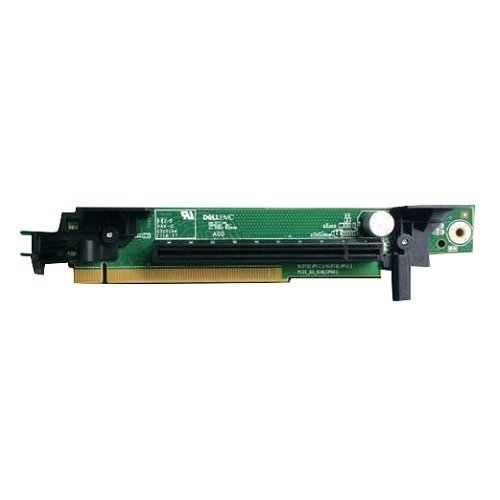

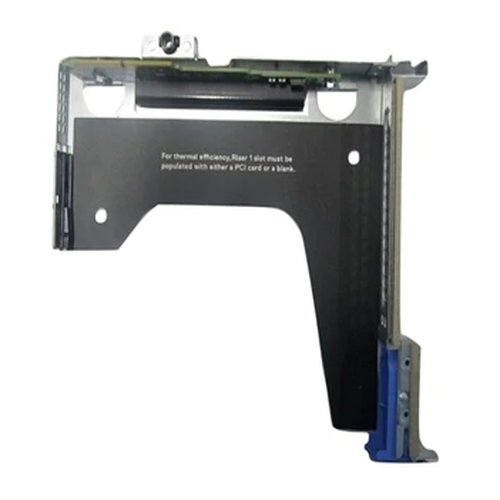

The Riser from Dell fits into the PCI-E slot of your Dell System. Riser cards are used to extend a slot for a chip or card in a fully loaded computer. This product has been tested and validated for on Dell systems to ensure it will work with your computer. It is supported by Dell Technical Support when used with a Dell system.
